Compact Boiler
Plug and play solution from PARAT. All in one skid.
Compact, efficient, and easy to install

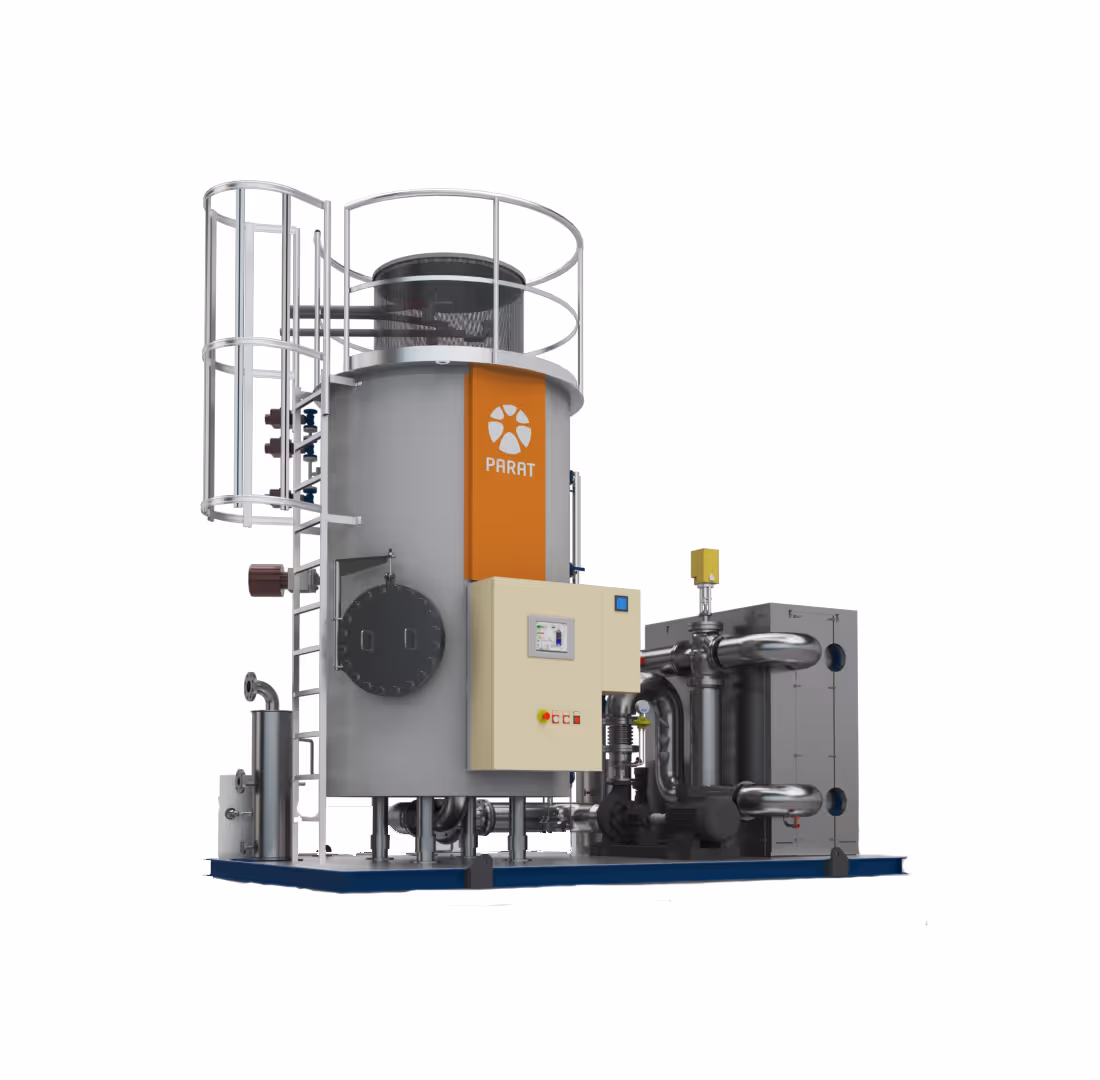

The new 5MW Skid-Mounted Electrode Boiler is a compact and fully integrated hot water solution, designed for efficient and reliable heating. Delivered as a plug-and-play unit, the entire system comes pre-assembled on a single skid, minimizing installation time and engineering requirements. This innovative hot water boiler is designed to reduce space requirements and simplify integration, making it the ideal choice for industrial and district heating applications.
Why choose the IEH compact
Reliable & low maintenance
The new electrode shape design ensures optimized electrical performance while allowing electrodes to be replaced without entering the boiler, making maintenance quick and hassle-free.
Plug-and-play operation
As a standardized solution, the boiler is ready for fast delivery. The preassembled skid includes all essential components, allowing for quick installation and immediate operation.
Space-saving & easy to install
The small footprint and lightweight design make it easier to fit into existing facilities. Everything is delivered as a single skid unit, reducing installation time and costs.
Optimized for your needs
The system is designed with scalability in mind—the capacity might be increased after initial test runs to meet specific customer requirements.
Fully integrated skid system includes:
- Water treatment unit
- Feed water treatment system
- Blow-down cooling system
- Boiler circulation system
- Heat exchanger
- Design in accordance with PED
- CE Approved

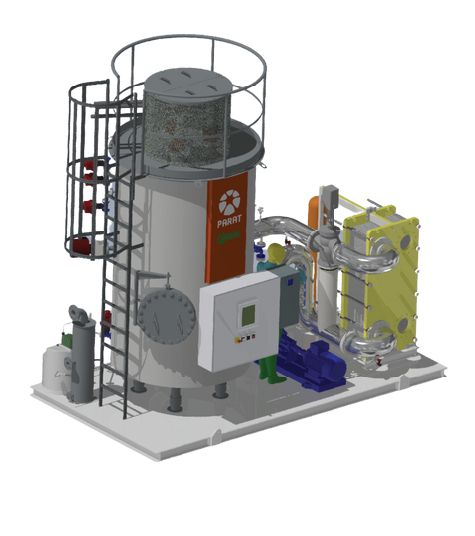

Technical overview
Fully integrated skid system includes:
- Water treatment unit
- Feed water treatment system
- Blow-down cooling system
- Boiler circulation system
- Heat exchanger
- Design in accordance with PED
- CE Approved
Technical specifications
- Type: Hot Water Boiler
- Output Range 50 kW – 5MW*
- Boiler Design Pressure: 12 barg
- District Heating Temperature: Up to 140°C
- Max Design Pressure: 16 barg
- Simple connection & integration
- Medium voltage connection ≤ 12 kV
- Direct district heating integration
- Drain, potable water, and pressure
- Safety valve (PSV) connections
- Instrument air for actuators
Measurements
- Height: 4500 mm
- Lenght: 4500 mm
- Width: 2490 mm
- Operating Weight: Approx. 8 tons
- Test Weight: Approx. 10,5 tons
