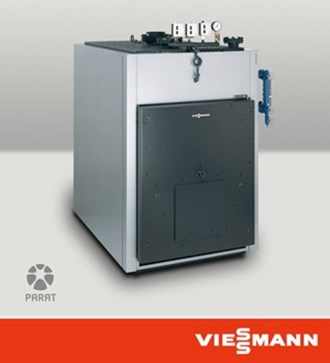

VITOPLEX 100-LS
Low Pressure Steam Boiler Type SXD 0.26 - 2.2 t/t, up to 1 bar
- Low pressure steam boiler with steam output from 0.26 to 2.2 t/h
- Economical energy consumption – boiler efficiency: 91 %; up to 95 % if an economizer is used
- Three-pass boiler with low combustion chamber load, resulting in clean combustion and low emissions
- Large steam chamber and large evaporator increase the steam quality
- Low heat losses due to thermal insulation of the entire boiler body
- Connectors for mounting necessary instrumentation, control and safety fittings
- Extensive range of matching accessories available
- With load-bearing boiler cover – for easier installation and maintenance
- Easy conversion to hot water operation
- Thousands in long-term use
The Vitoplex 100-LS is a compact three-pass boiler for generating low pressure steam in the output range between 0.26 and 2.2 t/h. This boiler is designed for a permissible operating pressure of 1 bar (high pressure). Subject to requirements, the operating pressure can be reduced to 0.5 bar (low pressure). The output range of the Vitoplex 100-LS meets the requirements for air conditioning and heating systems in commercial nurseries and business enterprises, such as laundries, where low steam pressures are required. The design of this boiler has been tried and tested in thousands of applications.
Large water capacity, in conjunction with long distances between the hot gas pipes and large clearances between inbuilt parts and the boiler shell, provide for excellent natural circulation and reliable heat transfer, resulting in high operational reliability and a long service life. The low material loading through the completely water-cooled rear reversing chamber and the absence of refractory linings result in an extremely low-stress boiler construction.
High steam quality
The very forgiving behavior in the event of load fluctuations brought about by the large water capacity is judged to be extremely positive. Thanks to the boiler design, residual moisture in the steam is prevented, even in the event of sudden or high steam demand, and high quality steam is made available continuously. The large steam chamber, with a correspondingly large evaporator and integral steam drier, supports the forgiving characteristics of this boiler.
Clean combustion
The very low combustion chamber volume loading in conjunction with the three-pass design enable this boiler to comply with even the strictest of emission limits.
